Tank Rolling Machine(Code：Automatic Molding Equipment)
Unique Visitor 2113
Product Details / 产品介绍
Tank Rolling Machine-Can body rolling machine

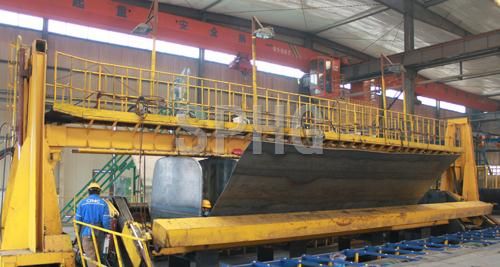

Use site of Shenzhen CIMC
Operation site of Yongqiang can wrapping machine
Use site of Hunan Shengtong group
Operation site of can wrapping machine in Samsung Group
Operation site of Zhongji Dongyue can packing machine
The tank body is closely connected with the partition board
Tank surface is smooth without damage
Head hold down device
Joint effect of aluminum tank
Partial drawing of aluminum tank head and cylinder
CIMC Dongyue can wrapping machine and plate rolling machine
Wuhu Nanling special vehicle production base
Wuhu Nanling special vehicle production base
Wuhu Nanling special vehicle production base
Wuhu Nanling special vehicle production base
Product details:
Toppled the manufacturing process of a traditional tank, the research, development and releasing of the forming machine for tank rolling is a breakthrough for tank manufacturing industry. The one-time forming of a tank after rolling guarantees the straightness of a work piece, with its working efficiency being 2 to 3 times of traditional manufacturing process. During a tank packing, the division plate and the barrel are jointed closely. During capped end abutment, there will be tight joint without misalignment. Easy and convenient operation has greatly reduced workers’ labor intensity. Welding in an open environment has greatly improved the operation environment.
This machine is suitable for both workpiece with uniform cross section and workpiece with variable cross section .its robot arm is a hydraulic arm with two joints. In addition ,it adopts the industrial automation technology ,forming the tank through one-time rolling
Tank rolling machine | |||||||
Name | Producton efficiency | Forming effects of tank body | Joint effects ofdished head | Foming ways | External forming effects | operation | Harm to workers |
Tank rolling machine | Producton efficiency Is five times higher Than plate rolling machine | It is closely where buffle plates and tank body joint. | Misalignment Between dished head And tank body is up to Zero. | One time | Staightness of tank body is high. | Workers are convenient to operate as well as Labor intensity is low | Working in open air when welding |
Plate rolling machine | Producton efficiency is low | It occurs big clearance of buffle plates and tank body,need to be adjusted by hammer. | It is easy to make misalignment when joint dished head and tank body | Many times | Straightness of tank body is low | Workers work in relatively poor surroundings as well as labor intensity is high. | Working in airtight environment when welding,workers need protection to be immune against harmness |
The Technical Statistics
NO | terms | Technical Statistics | Note |
1 | Maximum Diameter | 2800mm | Note: we design the technical parameters according to the workpiece plan of customer,and then manufacture the products. |
2 | Minimum Diameter | 1200mm | |
3 | Workpiece Maximum length | 13000mm | |
4 | Brake Mode | Hydraulic Braking | |
5 | Hydraulic Pressure | 15MPa | |
6 | Working Platform Height | 400mm |
※For details and pictures,contact the sales department0086 186 6072 7168.The above products are for reference only.The order is subject to the contract.
